Codez

Annotated code figures in Typst and CeTZ, with line, region, and character anchors.

Codez is a Typst package for placing annotated code inside CeTZ figures. Code remains addressable by line, marked region, and character, so arrows and labels can follow the code’s geometry.

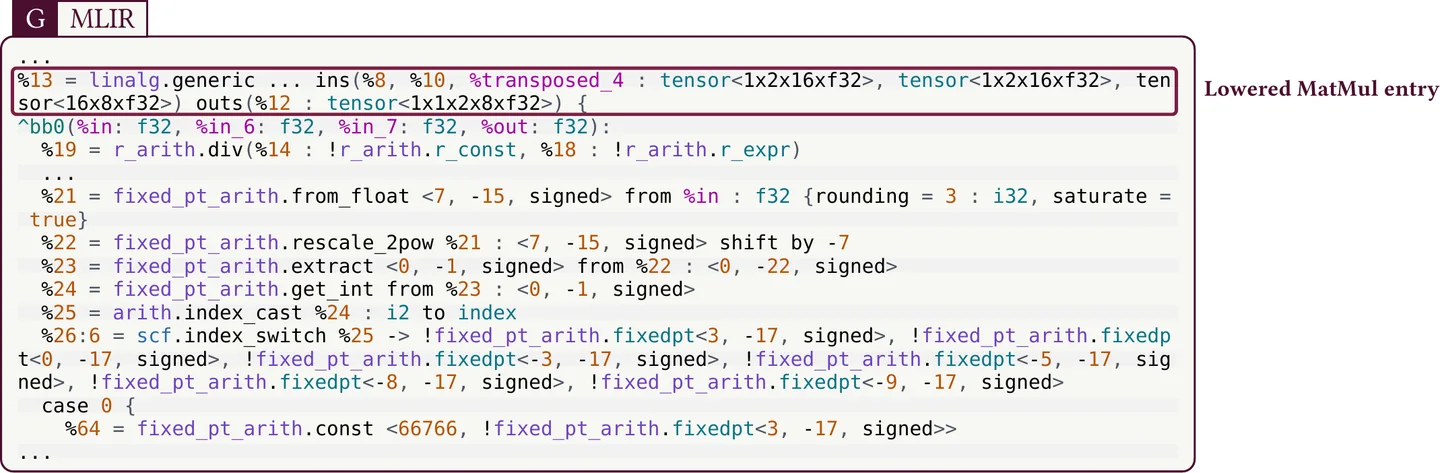

An MLIR excerpt with annotations positioned using Codez.

Use in Typst

#import "@preview/codez:0.1.0": *
#show: init.with()

The API includes parse for the source, mark and mark-char for selections, bbox-mark for their bounds, and cetz-block for rendering. Named anchors let the surrounding diagram refer to those regions without manually estimating coordinates.

I use it for research figures, slides, and posters that combine code with structural annotations. The README contains complete CeTZ examples, including annotations of the linear projections and SwiGLU operation in a Llama implementation.
